6 Piston

Products Number: F6B

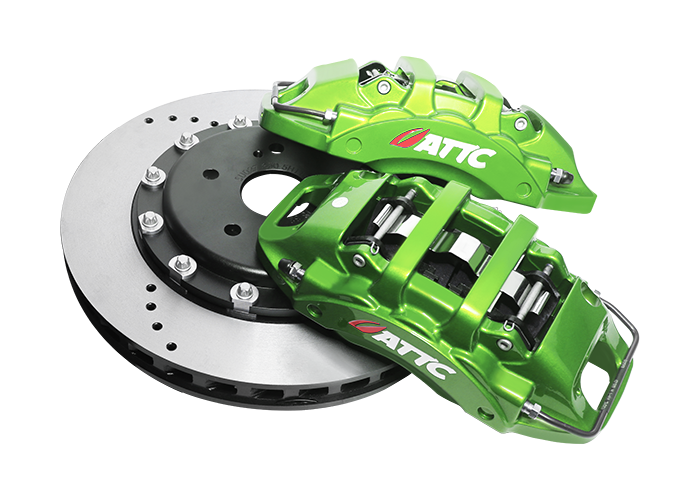

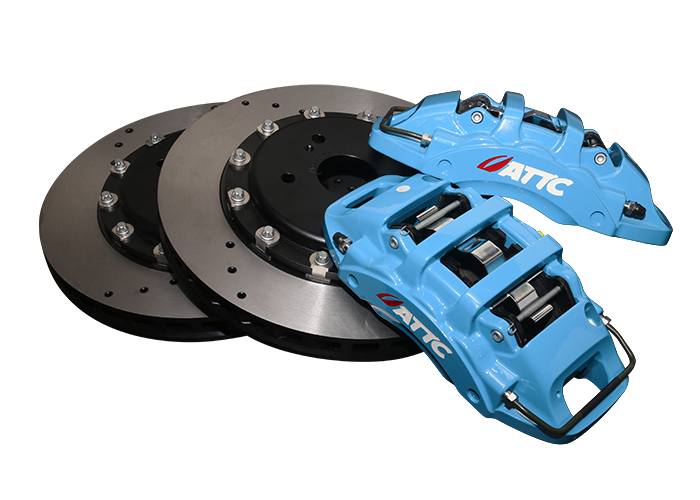

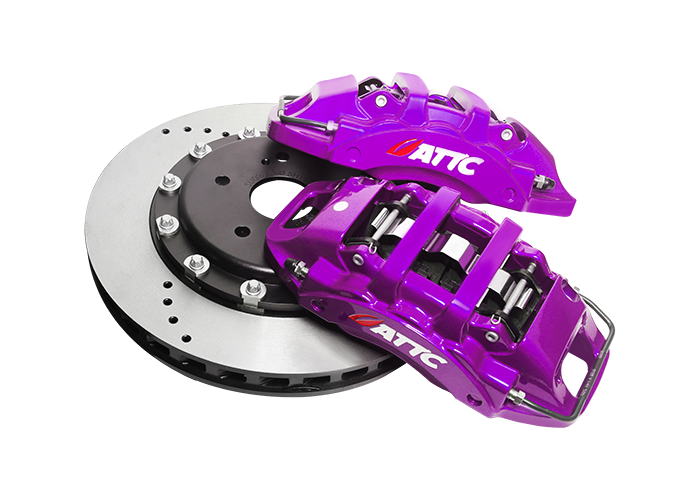

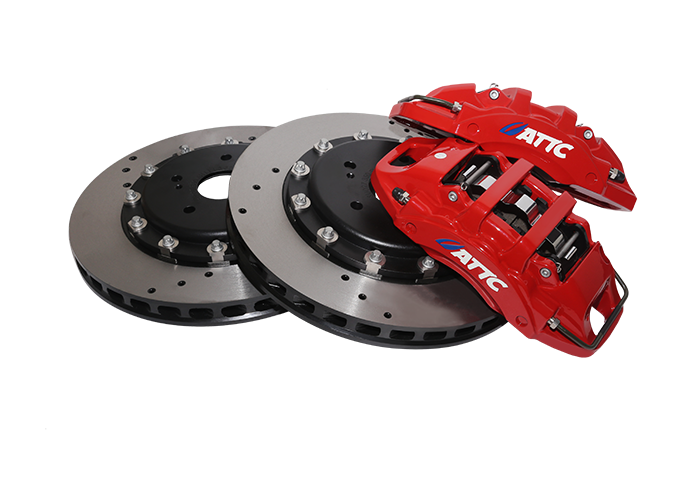

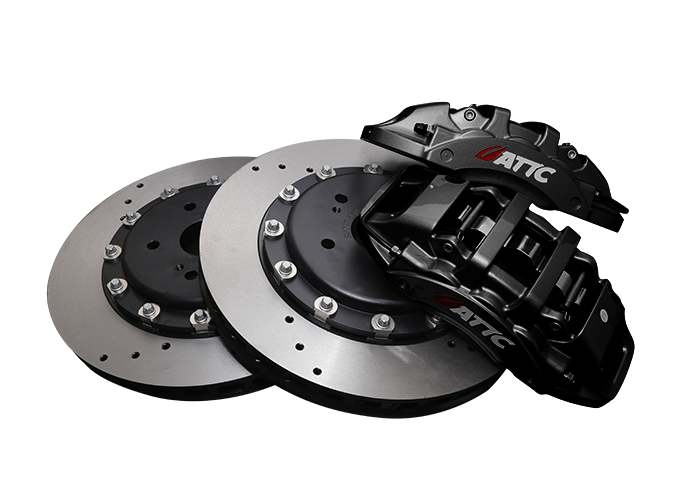

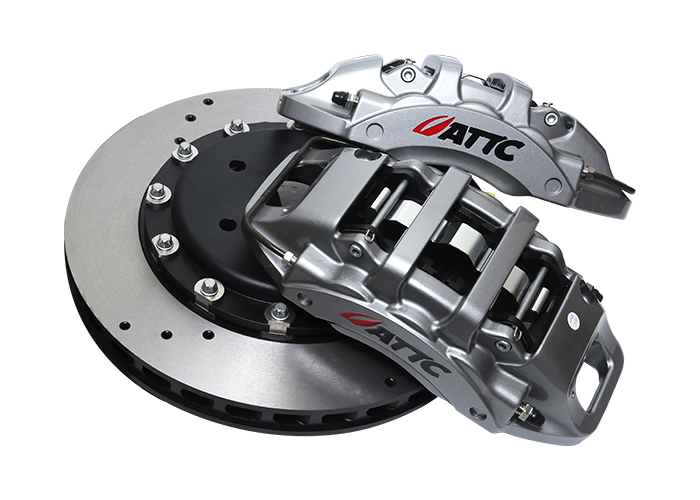

6 PISTON FORGED MONOBLOCK
üCALIPER

  1. Forged Monobloc 6 piston caliper, 5-axis machined for high accuracy.
  2. Strengthen Caliper Bridge for rigidity design.
  3. Caliper piston with dust cover to protect.
  4. Anode treatment and clean coat finish. 7 color options available.

üROTOR

  1. Floating tye disc.
  2. Available in drilled and slotted rotor.
  3. Rotor hat anode treatment finish. 7 color options available.
  4. Diameter of rotor range: 330 / 350 mm.  32 / 34 mm in thickness.

üMOUNTING BRACKET

  1. 6061-T6 aluminum alloy material for stronger structure.

üPAD

  1. Same specification as CP 7040 or AMG-S6 brake pads.
  2. Withstand much higher temperatures – up to 800℃.
  3. Exceptional brake pedal precision for total control of the braking force.

üBRAKE LINE

  1. Strong Teflon tube wrapped by double-layer stainless mesh.
  2. Pressure testing result can reach over 3000 PSI.
